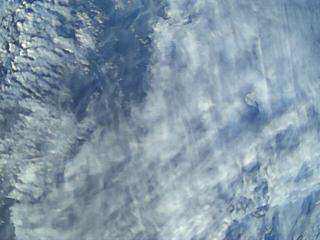

silver.py と ssdv.exe を同じフォルダーに置いておくと、jpgファイルが 自動的に生成されることを確認した。
by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]
[Open 3 terminals] 1. on first terminal run Direwolf KISS server > cd C:\Program Files\silversat\direwolf-1.8.1-a231971_x86_64 > direwolf -c direwolf.conf -r 48000 2. on second terminal run silver.py in the following site > cd C:\Program Files\silversat\silversat-main > silver.py 3. play the audio, for example open satnogs obs, and play the audio > automatically save as bin file into output folder (eg.#13232415) > in C:\Program Files\silversat\silversat-main\output 4. on three terminal run ssdv.exe > cd C:\Program Files\silversat\ssdv > ssdv -d -l 195 deeb796c_18.bin output.jpg http://www.asahi-net.or.jp/~ei7m-wkt/numb1179.htm http://www.ne.jp/asahi/hamradio/je9pel/silvssdv.htm
[Open 3 terminals] 1. on first terminal run Direwolf KISS server > download direwolf-1.8.1.tar.gz $ cd ./silversat/direwolf-1.8.1 $ mkdir build $ cd build $ cmake ../ $ sudo make $ sudo make install $ sudo ldconfig > re-name direwolf.conf as old [direwolf_old.conf] > and re-write [direwolf.conf] as follows #ADEVICE plughw:1,0 #ADEVICE0 udp:7355 default ARATE 48000 CHANNEL 0 MYCALL JE9PEL MODEM 9600 AGWport 8000 KISSport 8001 $ cd $ cd ./silversat/direwolf-1.8.1 $ direwolf -c direwolf.conf 2. on second terminal run silver.py $ cd $ cd ./silversat/silversat-main $ chmod 755 silver.py $ ./silver.py 3. on third terminal run $ cd $ sudo apt install pavucontrol $ pavucontrol > look at Recording tab, you will see direwolf app there, > please change capture to MONITOR mode. (Terminal上にデコードしない.) (in progress) 3.以降保留中 https://github.com/wb2osz/direwolf/releases https://github.com/hobisatelit/silversat?tab=readme-ov-file
2-v2. on second terminal run silver.py in the following site > https://github.com/hobisatelit/silversat?tab=readme-ov-file > cd C:\Program Files\silversat\silversat-main > silver.py 4-v2. on three terminal run ssdv.exe > https://x.com/Ja3Tdw/status/2012377161504792969 > cd C:\Program Files\silversat\ssdv > ssdv -d -l 195 deeb796c_17.bin output.jpg
[direwolf.conf] CHANNEL 0 MYCALL JE9PEL MODEM 9600 KISSPORT 8001 [Open 3 terminals] 1. on first terminal run Direwolf KISS server > cd C:\Program Files\silversat\direwolf-1.8.1-a231971_x86_64 > direwolf -c direwolf.conf 2. on second terminal run silver.py > cd C:\Program Files\silversat > rename to silver.py from silver.py.txt > silver.py 3. play the audio, for example open satnogs obs, and play the audio > automatically save as .bin file into output folder (eg.#13220914) 4. on three terminal run ssdv.exe > cd C:\Program Files\silversat\ssdv > ssdv -d -l 195 output.bin output.jpg https://github.com/fsphil/ssdv https://github.com/wb2osz/direwolf/releases https://community.libre.space/t/ng-23-silversat/13784/41 https://community.libre.space/uploads/short-url/8KBnEN7oUnjFegbs1VsDiFlIETY.zip
https://youtu.be/BqX0LS6c04A
#13191259, melody 10 seconds like Hydra-2
