何度かトランスポンダーの広報がされていますが、周波数関係を
改めて記しておきます。

EO-79 (QB50p1 and FUNcube-3)
Frequencies are as follows:
  145.815MHz 1k2 BPSK or CW Telemetry
Inverting SSB/CW transponder
  435.035 - 435.065MHz LSB Uplink
  145.965 - 145.935MHz USB Downlink
http://www.amsat.org/?page_id=2944
    or
  435.050 - 435.075MHz LSB Uplink
  145.970 - 145.945MHz USB Downlink
http://www.dk3wn.info/p/?p=58782

EO-80 (QB50p2)
Frequencies are as follows:
  145.880MHz 1k2 BPSK or CW Telemetry
FM Voice Repeater
  435.080MHz 210.7Hz PL_Tone Uplink
  145.840MHz Downlink (also 9k6 FSK data)
http://www.amsat.org/?page_id=2948

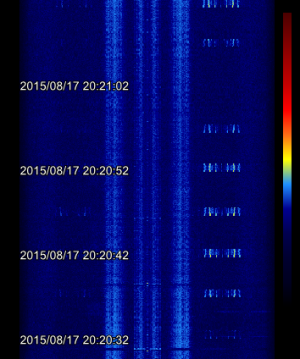

パケット音が 5回続けて強く聞こえて、6回目には弱くなる、の繰り返しでした。
ということは、衛星のスピンレートは約30秒、つまり 宇宙空間において 30秒で
一回転していることが予想できます。

20:17-20:30JST, 17 Aug 2015, Ele 39 S-E-EN, 437.301MHz 1200bps AFSK
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:20:37R] [++-]
OOREOS.org    89141D0003000E021AAC028702020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:20:42R] [+++]
OOREOS.org    8E141D0100001C02BFA20203000200CF090D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:20:47R] [++-]
OOREOS.org    93141D0200002C02885300A401600B9A000D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:20:52R] [+++]
OOREOS.org    98141D030000070200A3013202320054050D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:21:17R] [+++]
OOREOS.org    B1141D00000007021BAA028102020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:21:22R] [+++]
OOREOS.org    B6141D0100001502BF9E02A3010100CF090D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:21:27R] [++-]
OOREOS.org    BB141D0200002602885200A401600B9A000D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:21:47R] [++-]
OOREOS.org    CF141D0200002202880100A301600B9A000D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:21:57R] [++-]
OOREOS.org    D9141D00000000021AA9028602020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:22:17R] [-+-]
OOREOS.org    ED141D000000FD011BA8028102020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:22:22R] [+++]
OOREOS.org    F2141D0100000B02BF9802A3010000CF090D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:22:27R] [+++]
OOREOS.org    F7141D0200001D02885300A401610B9A000D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:22:32R] [+++]
OOREOS.org    FC141D030000F60100A3013202320054050D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:22:37R] [+--]
OOREOS.org    01151D000000FA011BA7028002020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:22:57R] [++-]
OOREOS.org    14151D000000F7011BA7028002020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:23:02R] [++-]
OOREOS.org    1A151D0100000502BF9402A3010000CF090D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:23:32R] [++-]
OOREOS.org    38151D030000EC010007003202320054050D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:23:37R] [+++]
OOREOS.org    3D151D000000F0011AA5028602020286010D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:24:12R] [++-]
OOREOS.org    60151D030200E50100A3013202320054050D5F094300204B46
1:Fm KF6JBP To UNDEF Via TELEM <UI C Pid=F0 Len=64> [20:24:17R] [+++]
OOREOS.org    65151D000000EB011BA3028002020286010D5F094300204B46

『(新)サテライト入門(はじめの一歩)総集編 Q&A方式の記述』と題する JA1CPA局
による記事が、本日2015年8月17日リニューアルされました。大変読み応えのある
ページにまとめられています。
http://www.ne.jp/asahi/ja1cpa/ja1cpa/sat100.html
