StratoSat-TK1 today ― 2025年03月01日 18時45分


#11165803

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

UmKA-1 today ― 2025年03月01日 21時03分

#11164890
#11168199

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

UmKA-1 ― 2025年03月02日 18時05分

#11167002
Дворец пионеров и школьников имени Н.К.Крупской

チェリャビンスク市クルプスカヤ宮殿 85周年記念(28 Feb)
February 28 marks the 85th anniversary of the Palace of Pioneers and
Schoolchildren named after N.K. Krupskaya, located in the city of Chelyabinsk.

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

StratoSat-TK1 ― 2025年03月03日 07時12分

#11170271

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

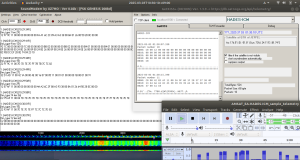

HADES-ICM test wav ― 2025年03月03日 14時41分

**********************************************************
2025-03-03 01:30:07.330
Packet number 10
0000: C0 00 C2 00 00 00 00 00 00 00 00 00 00 00 00 00
0010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0020: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0040: C0

À.Â.............................................................À
**********************************************************
2025-03-03 01:30:15.340
Packet number 11
0000: C0 00 42 ED AF 11 00 5A 9F 6D 1F 20 37 37 38 4D
0010: 13 64 6A A5 6C 45 50 39 39 39 A2 16 1A 48 26 37
0020: 37 00 A1 C0

À.Bí¯..ZŸm. 778M.dj¥lEP999¢..H&77.¡À
**********************************************************

HADES-ICM sample telemetry.wav
https://www.amsat-ea.org/proyectos

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

HADES-ICM data analysis ― 2025年03月03日 19時13分

HADES-ICM sample telemetry.wav
https://www.amsat-ea.org/proyectos

HADES-ICM data analysis (like HADES-R)
http://www.ne.jp/asahi/hamradio/je9pel/50303ic2.txt

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

New Sats Launch ― 2025年03月03日 20時40分

SpaceX transporter 13 mission
Launch: 15 Mar 2025, 06:39 UTC

BOTSAT-1
Botswana International University of Science and Technology
Down: 401.360MHz, 4k8_GMSK

Buccaneer-MM
UNSW DSTO, Australia
Down: 400.800MHz, 9k6_FSK

HADES-ICM
AMSAT-EA, Spain
Up:145.875MHz Down:436.666MHz, 200-2k4_FSK/FM/CW

HERMES-Pathfinder
Down: 401.000MHz, USA, details unknown

ION-SCV-017
D-Orbit, Italy
Down:401.415/2275.500MHz, 1k2_FSK

JINJUSAT-1B
Down: 435.185MHz, 9k6_BPSK, South Korea

NILA
Down: 435.400MHz, 9k6_GFSK, India

TEVEL2-1 ~ 2-9
Herzliya Science Center, Israel 9 sats
Up:145.970MHz Down:436.400MHz, 9k6_BPSK/FM

UVSQ-SAT NG
Universite de Versailles Saint-Quentin-en-Yvelines, France
Down: 401.850/2208.000MHz, 9k6_BPSK/FM

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

StratoSat-TK1 ― 2025年03月04日 22時03分

#11180677

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

SSTV collection ― 2025年03月05日 07時16分

ArcticSat-1      http://wakky.asablo.jp/blog/2025/01/02/9744113
BGS-ARPIT        http://www.ne.jp/asahi/hamradio/je9pel/bgs_sstv.htm
HSU-SAT1         http://drive.google.com/file/d/1dOstYiWvOn_g7qm33z6iPOQJaTI3JdXf/view
Monitor-3/4      http://www.ne.jp/asahi/hamradio/je9pel/mon4sstv.htm
Mordovia-IOT     http://www.ne.jp/asahi/hamradio/je9pel/41128mor.htm
NEXUS            http://www.ne.jp/asahi/hamradio/je9pel/nexisstv.htm
ORBICRAFT-ZORKIY http://www.ne.jp/asahi/hamradio/je9pel/orbiczor.htm
Ruzaevka-390     http://www.ne.jp/asahi/hamradio/je9pel/ruzaevka.htm
SOCRATES         http://www.ne.jp/asahi/hamradio/je9pel/jaxalos3.htm
SONATE-2         http://www.ne.jp/asahi/hamradio/je9pel/snt2sstv.htm
SEEDS-II         http://www.ne.jp/asahi/hamradio/je9pel/seedigit.htm
StratoSat-TK1    http://www.ne.jp/asahi/hamradio/je9pel/stratsa2.htm
SWSU-55          http://drive.google.com/file/d/1yD8CZXuzwK7lDn5voZpggQNp1tl5EUNq/view
UmKA-1           http://www.ne.jp/asahi/hamradio/je9pel/umk2sstv.htm
UTMN-2           http://www.ne.jp/asahi/hamradio/je9pel/utm2sstv.htm
UreSat-1         http://wakky.asablo.jp/blog/2025/02/07/9753047
VIZARD-meteo     http://www.ne.jp/asahi/hamradio/je9pel/vizardss.htm

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]

UVSQ-SAT NG 1 ― 2025年03月05日 10時31分

Universite de Versailles Saint-Quentin-en-Yvelines, France
Launch: 10 Mar 2025, 06:39 UTC
Down: 401.850/2208.000MHz

The Uvsq-Sat NG communication subsystem is tasked with establishing and maintaining
communication links between the satellite and ground stations. Its primary goal is to
enable the smooth transmission of data, commands, and telemetry information to and from
the satellite. The key components of this subsystem include the TRXVU communication
device (UHF/VHF band), the UHF/VHF antennas, the TXS high-data-rate S-band transmitter,
and the S-band patch antenna. The S-band downlink, with the platform oriented towards
Nadir, falls within the frequency allocation of 2200 to 2290 MHz. The Isispace VHF
Receiver (RX) operates in the commercial frequency range of 148 to 150.5 MHz, and for
amateur frequency coordination, it operates within the frequency range of 145.8 to 146.0
MHz. On the other hand, the Isispace VHF Transmitter (TX) covers the commercial frequency
range of 400.15 to 402.0 MHz and, for amateur usage, it spans the range of 435.0 to 438.0
MHz. An audio transponder will also be used with the amateur radio community.
https://www.mdpi.com/2072-4292/15/19/4876

by JE9PEL/JR6 (Ishigaki) [コメント(0)｜トラックバック(0)]
