Satellites information update by JE9PEL

CADRE, STMSat-1各衛星が ISS から放出展開されることは、
まだ公けには広報されていませんが、間違いないようです。
CADRE, STMSat-1 deployment now set for the week of March 7 !

CADRE
University of Michigan
437.485MHz 9600bps GMSK
3.404GHz 1Mbit OQPSK
http://exploration.engin.umich.edu/blog/?page_id=961


(C)Michigan Exploration Laboratory

STMSat-1
St. Thomas More Cathedral School
437.800MHz 9600bps GMSK
http://www.stmsat-1.org/


(C)Canadensys Aerospace Corporation

SDR#
HS_SounModem
AGW_OnlineKiss

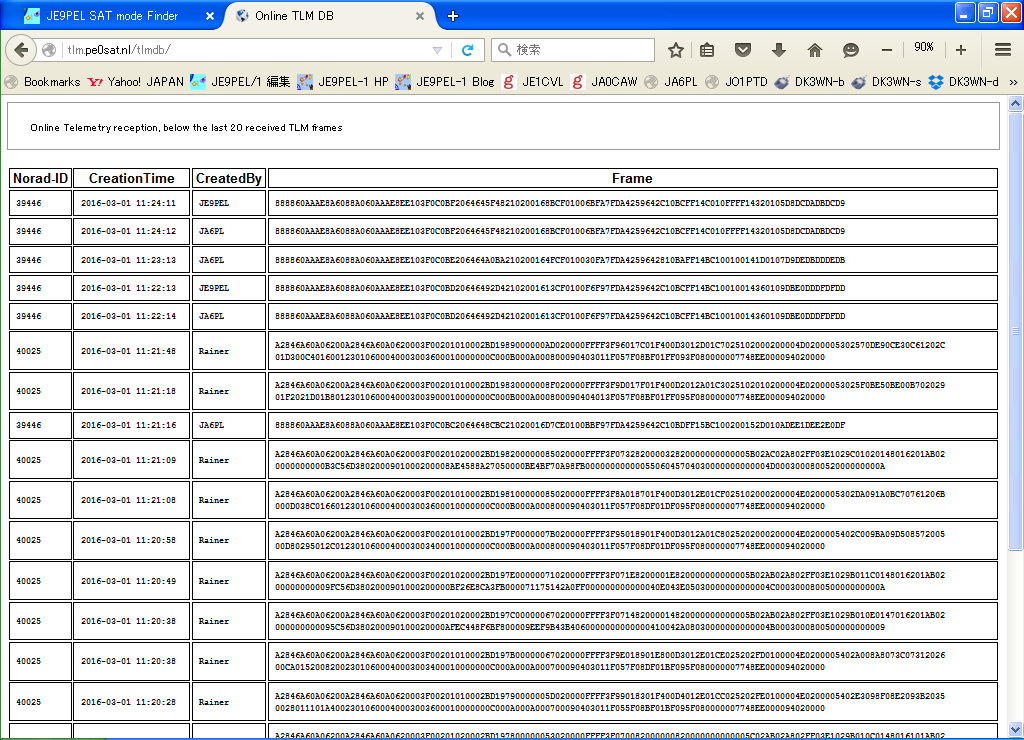

Online_Telemetry_Decoder
Online_Telemetry_Forwarder

CADRE, GRIFEX, MCubed-2 の各々衛星に対応する ｢MXL Ground Station Client｣
ソフトが、Ver1.1.0 として新しく公開されました。詳細な設定手順については･･･

----------------------------------------------------------------------------
MXL Ground Station Client setup

 (1) Access to the following GRIFEX web site.
     http://exploration.engin.umich.edu/blog/?p=2535

 (2) Click "Downloading the MXL Client Application" and open the PDF file.

 (3) Click to get an account at http://mxl-ops.engin.umich.edu/

 (4) Set your account here and Login.

 (5) Input your "Username and Password" in the popuped window.

 (6) Get "API Access Token" number in the bottom right of the display.

 (7) Press "Dounload Public Client Launcher" in "MXL Satellite Client".

 (8) Download automatically "mxl_client.zip" into your PC.

 (9) Extract this zip file to the appropriate folder.

(10) Edit config.props in "groundstation" in "mxl_client" folder.

       radio.1.port=8100
       client.callsign=JE9PEL

(11) Run setup_pyserial.bat in "mxl_client" folder.

(12) Don't use run_serial_to_tcp.bat,
     Run directly "run_gs_client.bat" in "mxl_client" folder.

(13) Imput your "API Access Token" number in the popup window.

(14) Then run automatically "MXL Ground Station Cliant v1.1.0".

(15) Change to CADRE or GRIFEX or MCubed2 in "Select Satellite" tab.

(16) Install Python 2.7 at the time of the appropriate timing.
     http://www.python.org/download/

(17) Run HSM (High Speed Soundmodem by UZ7HO).

(18) Check "Enabled" in "KISS Server Port: 8100" in HSM(UZ7HO).
       Settings -> Devices -> Server setup

(19) Then you can decode the signal by the above setting.

                                        Edited by JE9PEL, Mineo Wakita
----------------------------------------------------------------------------
